SMA Large Scale Energy Solution

Grid independence with solar power

Green electricity 24/7

The SMA Energy Solution enables conventional and renewable energy sources to be combined intelligently. Power plant projects wherever the utility grid is not available or provides an inadequate supply are a profitable and sustainable investment project for investors. Integrating solar power minimizes fuel and maintenance costs.

Off-grid energy worldwide

Battery storage systems provide remote regions with a reliable supply, covering up to 100% of their needs with sustainable energy and reducing harmful emissions. With their grid-forming properties, the SMA Sunny Central Storage battery inverter and the intelligent SMA Power Plant Manager plant control ensure that utility grids are 100% stable and guarantee an all-round supply that conserves resources.

Benefits

Green energy supply 24/7 anywhere in the world

Save on generator and diesel costs

Integrate solar energy optimally into existing infrastructures

Reliably comply with CO₂ and other environmental regulations

Components

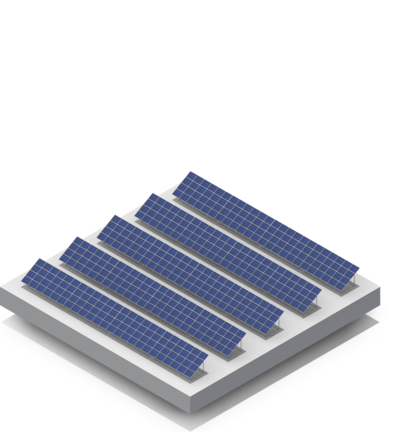

PV modules

optimized for the local conditions and your requirements.

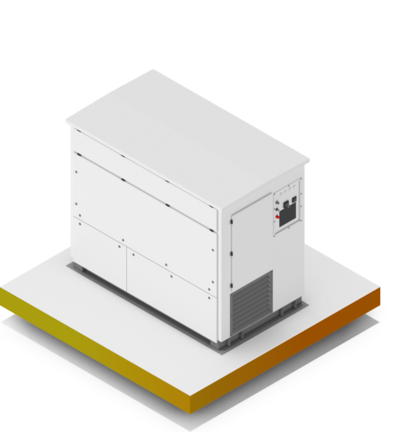

Sunny Central UP

SMA central inverter that converts solar power (direct current) into usable alternating current.

Sunny Central Storage UP

SMA battery inverter that stores solar power temporarily in the battery and makes it available as required.

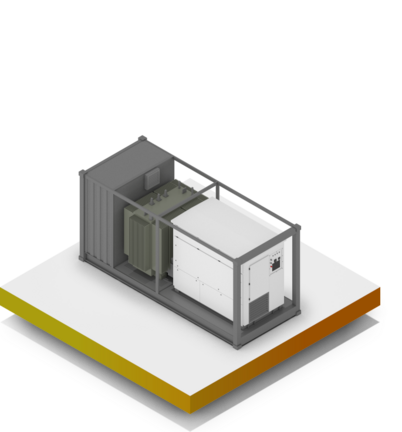

MVPS UP

turnkey container solution with Sunny Central UP and a perfectly coordinated medium-voltage solution that includes a transformer and switchgear.

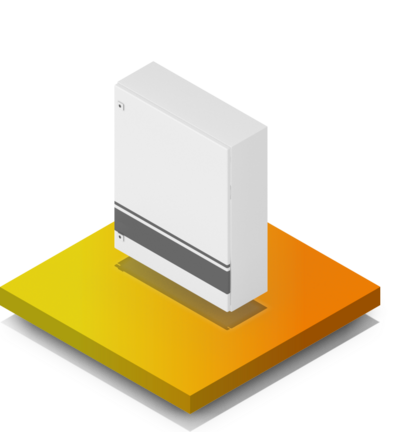

Power Plant Manager

smart energy manager that operates in conjunction with SMA Monitoring and is responsible for communication and overall system monitoring.

SMA Monitoring

enables easy and efficient online monitoring of your SMA Energy Solution.

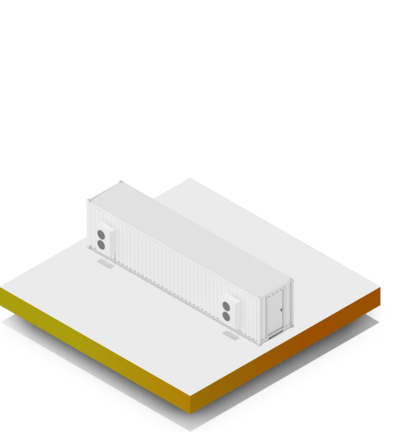

Battery

our Engineering Service team will advise you on the appropriate battery capacity and power for you.

The system in detail

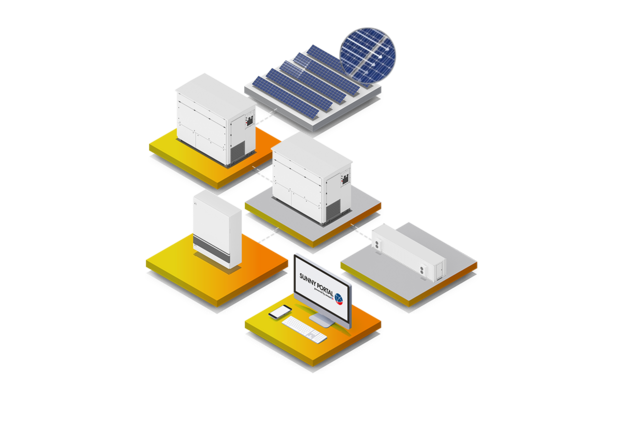

This is how the Power Plant Manager can be used to manage and monitor the energy flow in your power plant.

PV modules
The PV modules generate direct current from incoming sunlight.
Sunny Central UP
The SMA Sunny Central UP central inverter is the core of your SMA Large Scale Energy Solution with a centralized system layout. It converts the direct current generated by the PV system into alternating current to be able to feed this into the grid.
Sunny Central Storage UP
The SMA Sunny Central Storage UP battery inverter temporarily stores the surplus solar power in the battery. It performs various grid support functions including frequency, voltage and reactive power control, and it can carry out a black start in the event that the grid collapses.
SMA Power Plant Manager
The SMA Power Plant Manager monitors and manages the energy flows between producers, consumers and the utility grid. It secures need-based energy generation, helps stabilize the utility grid and contributes to optimal energy marketing.
Battery
The battery efficiently stores the solar power temporarily and makes it available again as required. This means that you can use solar power around the clock and feed it into the grid as necessary.
SMA Monitoring
With SMA Sunny Portal powered by ennexOS, you can keep track of current and historical system data at all times. This also enables you to see exactly how much electricity you could still sell.

PV modules
The PV modules generate direct current from incoming sunlight.
Sunny Central UP
The SMA Sunny Central UP central inverter is the core of your SMA Large Scale Energy Solution with a centralized system layout. It converts the direct current generated by the PV system into alternating current to be able to feed this into the grid.
Sunny Central Storage UP
The SMA Sunny Central Storage UP battery inverter temporarily stores the surplus solar power in the battery. It performs various grid support functions including frequency, voltage and reactive power control, and it can carry out a black start in the event that the grid collapses.
SMA Power Plant Manager
The SMA Power Plant Manager monitors and manages the energy flows between producers, consumers and the utility grid. It secures need-based energy generation, helps stabilize the utility grid and contributes to optimal energy marketing.
Battery
The battery efficiently stores the solar power temporarily and makes it available again as required. This means that you can use solar power around the clock and feed it into the grid as necessary.
SMA Monitoring
With SMA Sunny Portal powered by ennexOS, you can keep track of current and historical system data at all times. This also enables you to see exactly how much electricity you could still sell.

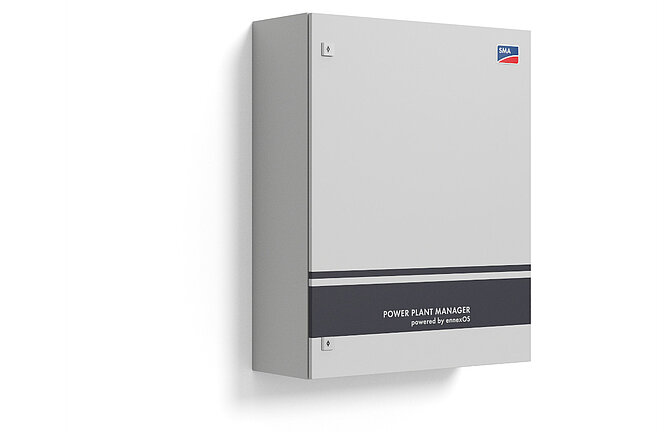

Power Plant Manager

The brain of your SMA Large Scale Energy Solution

Together with Sunny Portal powered by ennexOS, the Power Plant Manager is the central system of your SMA Large Scale Energy Solution and intelligently manages all energy flows.

The system in detail

This is how the Power Plant Manager can be used to manage and monitor the energy flows in your power plant.

Analyzes and manages all energy flows:
Records all relevant data and performs parameterization
Visualizes all important system data in Sunny Portal
Greater security thanks to updates, including via remote access
Enables grid services

Analyzes and manages all energy flows:
- Records all relevant data and performs parameterization
- Visualizes all important system data in Sunny Portal
- Greater security thanks to updates, including via remote access
- Enables grid services

The Power Plant Manager is the central system of the power plant and intelligently manages all energy flows.

The Power Plant Manager is the central system of the power plant and intelligently manages all energy flows.

Manages the renewable power plant:
Controls generation power
Optimizes energy flows
Controls active and reactive power as necessary
Supports voltage and frequency control

Manages the renewable power plant:
- Controls generation power
- Optimizes energy flows
- Controls active and reactive power as necessary
- Supports voltage and frequency control

Controls the battery system:
Compensates for load peaks
Shifts energy
Supports AC- and DC-coupled battery systems
Controls state of charge and symmetry

Controls the battery system:
- Compensates for load peaks
- Shifts energy
- Supports AC- and DC-coupled battery systems
- Controls state of charge and symmetry

Enables the following grid services:
Voltage and frequency control
Ramp rate control
Primary control reserve
Black start and synchronization

Enables the following grid services:
- Voltage and frequency control
- Ramp rate control
- Primary control reserve
- Black start and synchronization

Controls microgrids:
Enables 100% renewable energy supply
Keeps reserve power available
Establishes grid-forming operation including black start in the event of utility grid failure
Secures a backup power supply

Controls microgrids:
- Enables 100% renewable energy supply
- Keeps reserve power available
- Establishes grid-forming operation including black start in the event of utility grid failure
- Secures a backup power supply

Manages and controls energy flows from various producers in a way that the power plant can feed in energy efficiently and securely, and stabilize grids.

Manages and controls energy flows from various producers in a way that the power plant can feed in energy efficiently and securely, and stabilize grids.
